Hand Sawing, Road Sawing, Track Sawing, Wire Sawing and Core Drilling
Most concrete is reinforced to provide additional strength and protection to the concrete structure. This includes reinforcement bars (REO) and mesh placed inside concrete slabs to post tension cable to provide large scale structural support.
When attempting to penetrate areas with steel reinforcement, depending on the type and quantity, significant difficulty can be encountered. Issues such as a safe location to penetrate as well as what, if any steel, is safe to cut. The method to be used to perform the cutting is also important to ensure the task is completed without damage or danger.
Below we provide some examples of different reinforced concrete cutting application. Also listed are various concrete cutting methods available to perform reinforced concrete cutting.
To finish we provide details of some companies we have found to be both capable and reliable. They have been cutting reinforced concrete in Sydney for a long time, successfully completing some of Sydney's largest projects. Further to this, they also service all segments of the market including residential, commercial, infrastructure, and government.
Applications
Typical sawing / cutting applications include:
- Determine the location and depth of rebar (reinforcement bars), concrete wire-mesh, steel beams, post tension cables;
- Formation of new doorways and windows
- Demolition cutting of walls and floors
- Creating penetrations for electrical and plumbing services
- Straight smooth finished opening in walls, ceilings and floors
- Mass concrete removal without breakage
- Cut through heavily reinforced concrete
- Cutting expansion joints
- Precision trimming

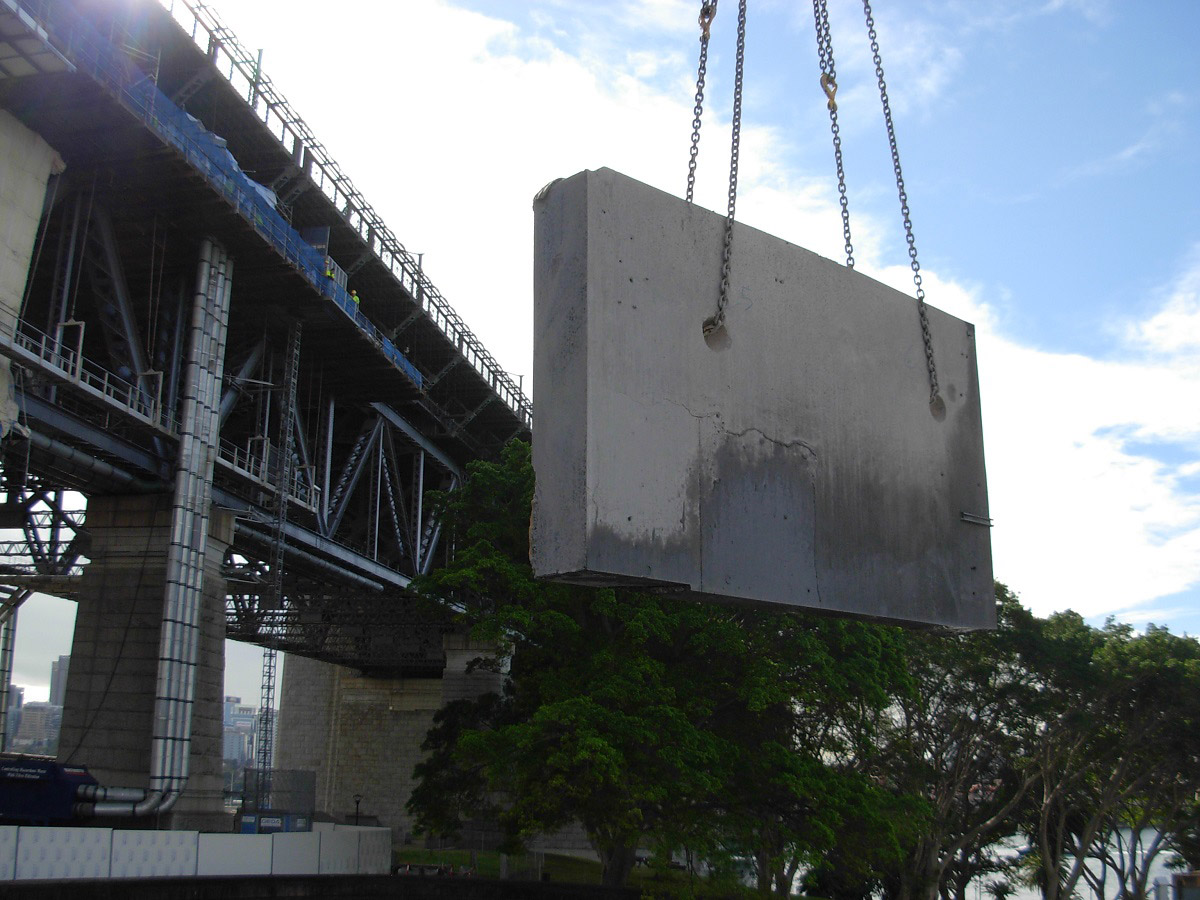

Block removal
Removing head stock at Davis road Bridge over live railway using a wire saw.
Wall Penetration
A track saw is used to remove top of lift shaft plant room at the Park Hyatt in Sydney.

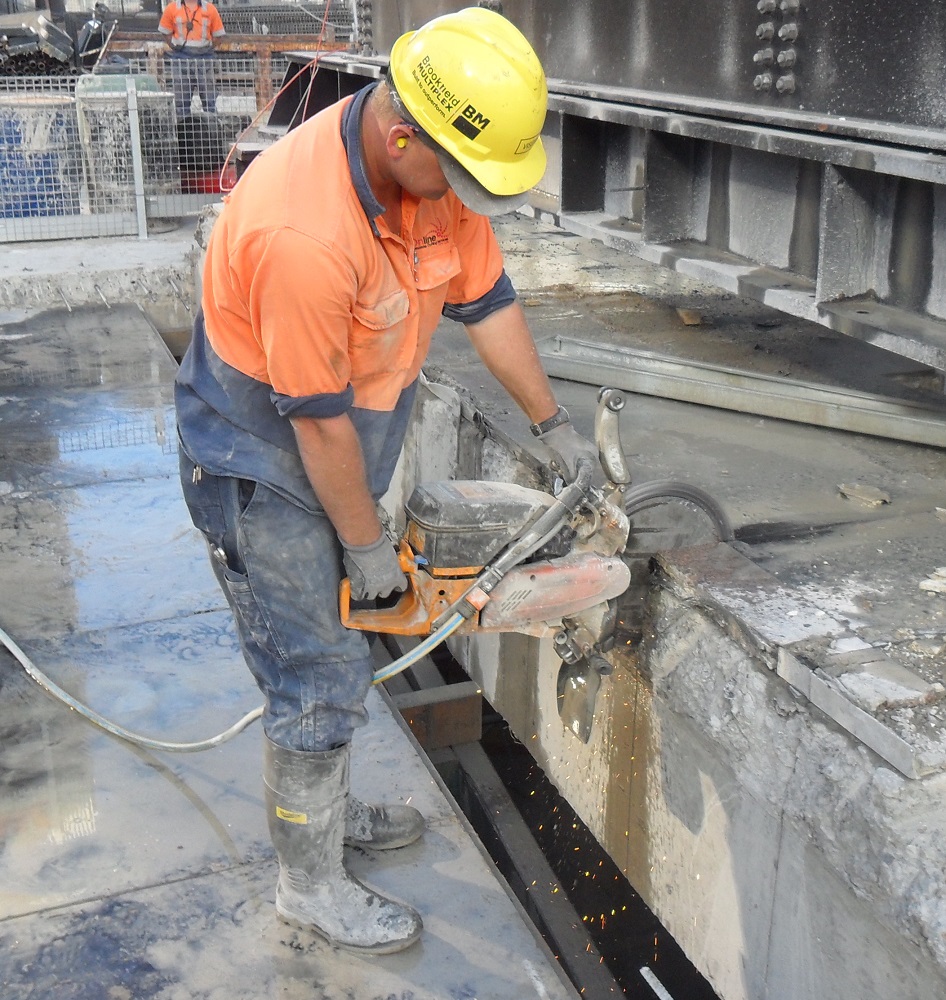

Hand Sawing
Hand held saw cutting is very versatile and can be used in nearly every situation where cuts are required. Numerous hand held sawing options exist these days including the standard demo saw, ring saw, dragon saw and flush cutter. This allow for cutting depth of up to 400mm using a hand saw.
The ring saw and Dragon Saw differ from other saws because the blade is not put on a spindle, the blade has no core (center) and it rotates on a roller system.

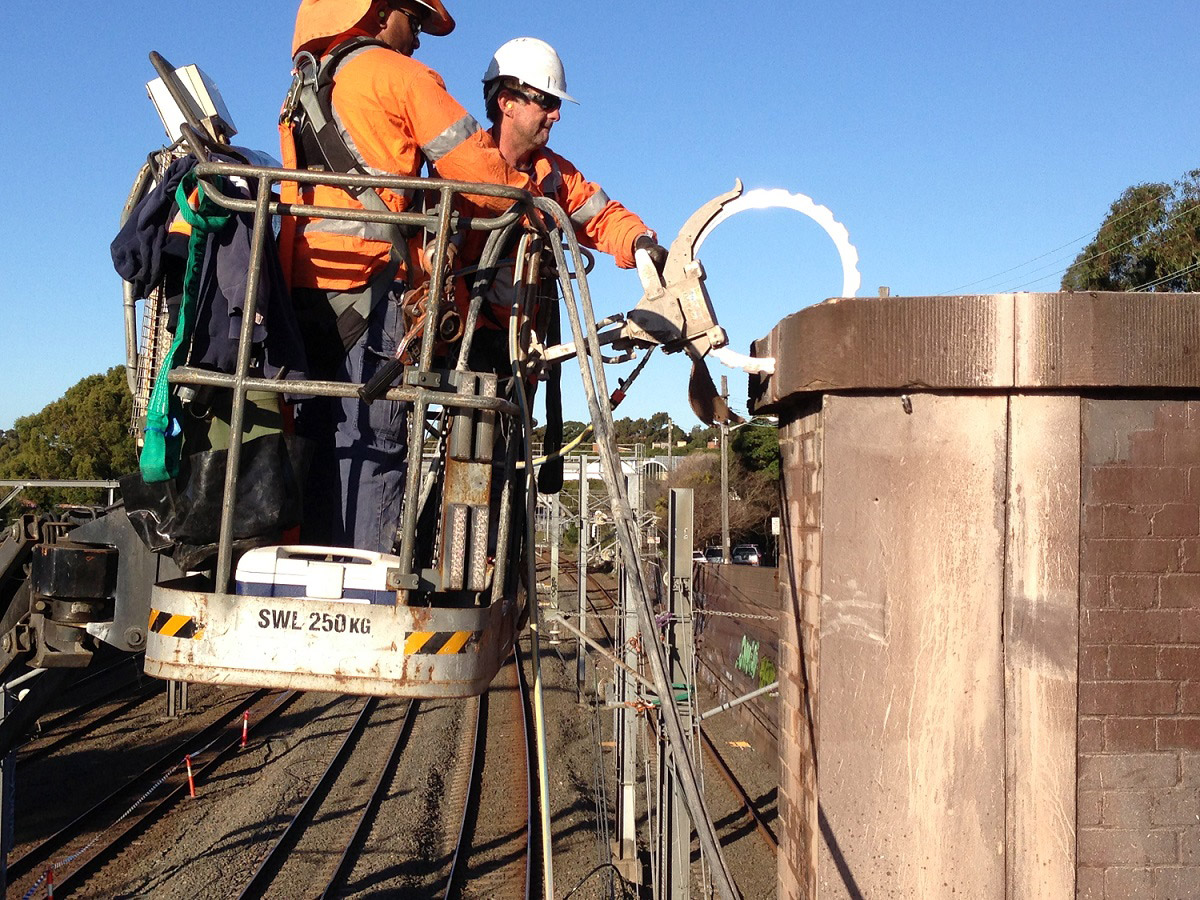

Brick pier Sawing
Hand held sawing (using a Dragon Saw) to cut 400mm deep rebate in brick wall for new concrete panels to be placed.
Ring Sawing
Ring Saw used to cut 270mm thick concrete beams once floor removed.
Road Sawing
Road sawing, also known as slab sawing or floor sawing, is used to cut horizontal flat surfaces such as concrete floors, tiles, pavers, brick floor, cobble stone, bridge decks, roadways and pavement.
Improvements in sawing technology has resulted in the manufacture of machines able to cut 600mm deep. Due to their versatility and scope, saws are driven both by diesel fuel and electric (to facilitate work in poorly ventilated areas such as indoors).

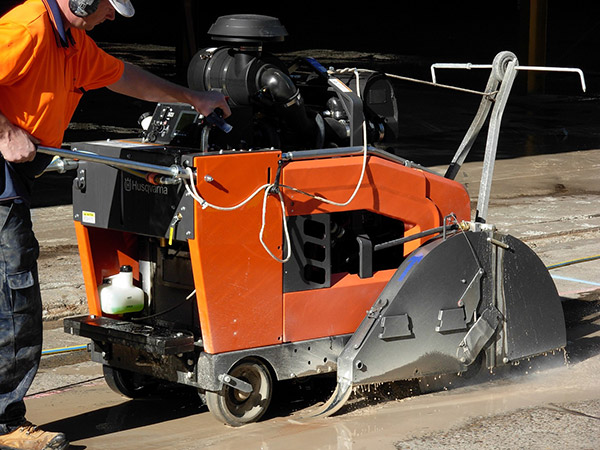

Floor Sawing
Road sawing suspended slab (pre cutting to 170mm deep) using a Husqvarna 4800D.

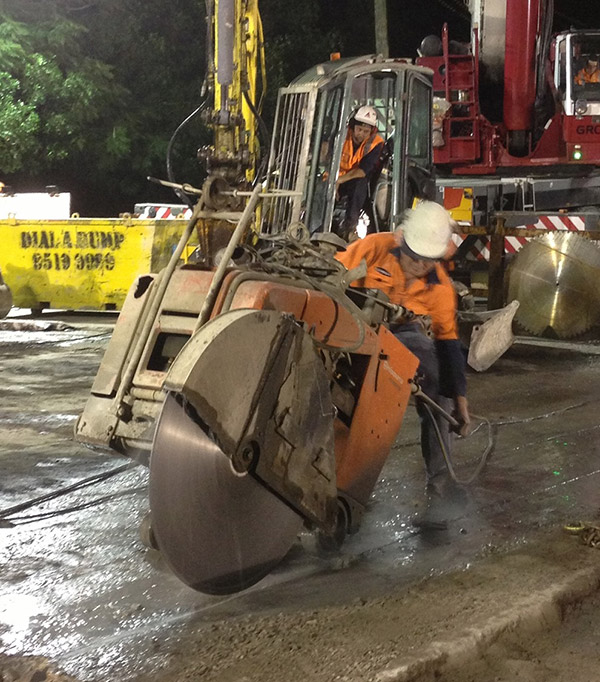

Road Sawing
Road Sawing suspended slab (last stage) 350mm deep. Saw able to cut 400mm deep.
Wall Sawing
Wall sawing employs a diamond blade on a track-mounted system that can be used for vertical and horizontal cuts. Wall Saws are able to cut quickly and accurately from any position - even upside down. It can be mounted at an angle or adapted for flush cutting next to a wall or along a floor as needed. Wall saw blades can range from 457mm to 2.2m in diameter and can cut up to 1000mm in depth.

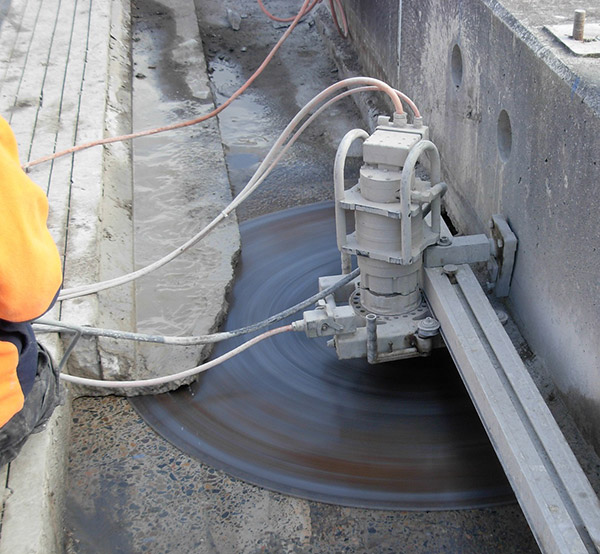

Flush cut Wall Saw
Wall sawing with flush cut attachment to cut concrete hobb off bridge.

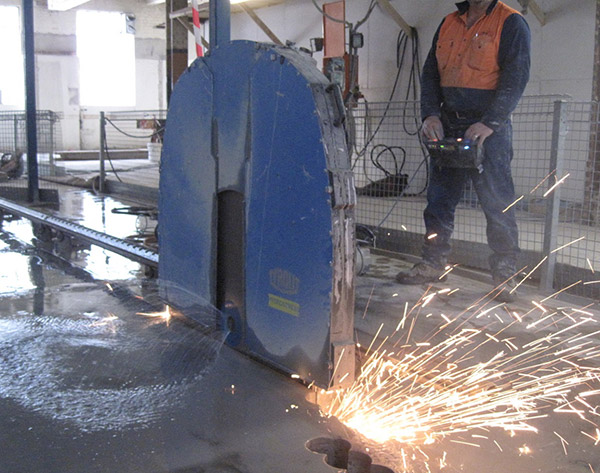

Floor removal
Wall Saw used to remove over 100 tons of suspended concrete floor in Surry Hills.
Core Drilling
Diamond core drilling or "coring" is the process of drilling perfectly round holes through concrete, brick, masonry, stone, and asphalt structures such as walls, floors and ceilings.
Diamond core drills can be operated in any orientation, vertical, horizontal and even inverted (upside down).

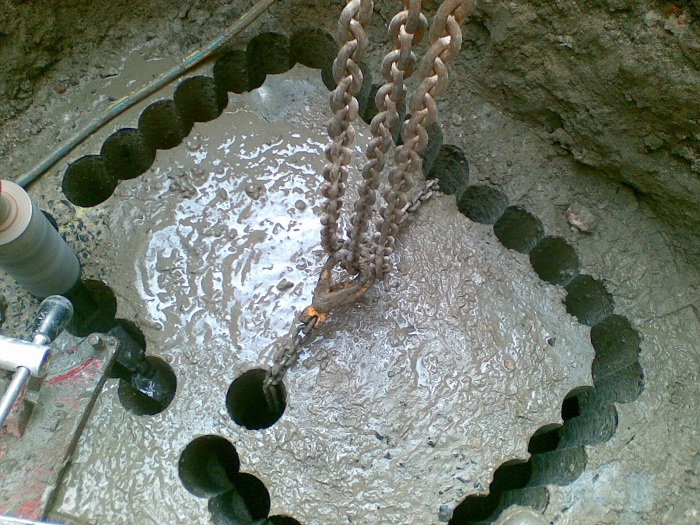

Stitch drilling opening
Confined work area. No over cutting permitted. Stitch drilling is a good alternative for limited work areas.

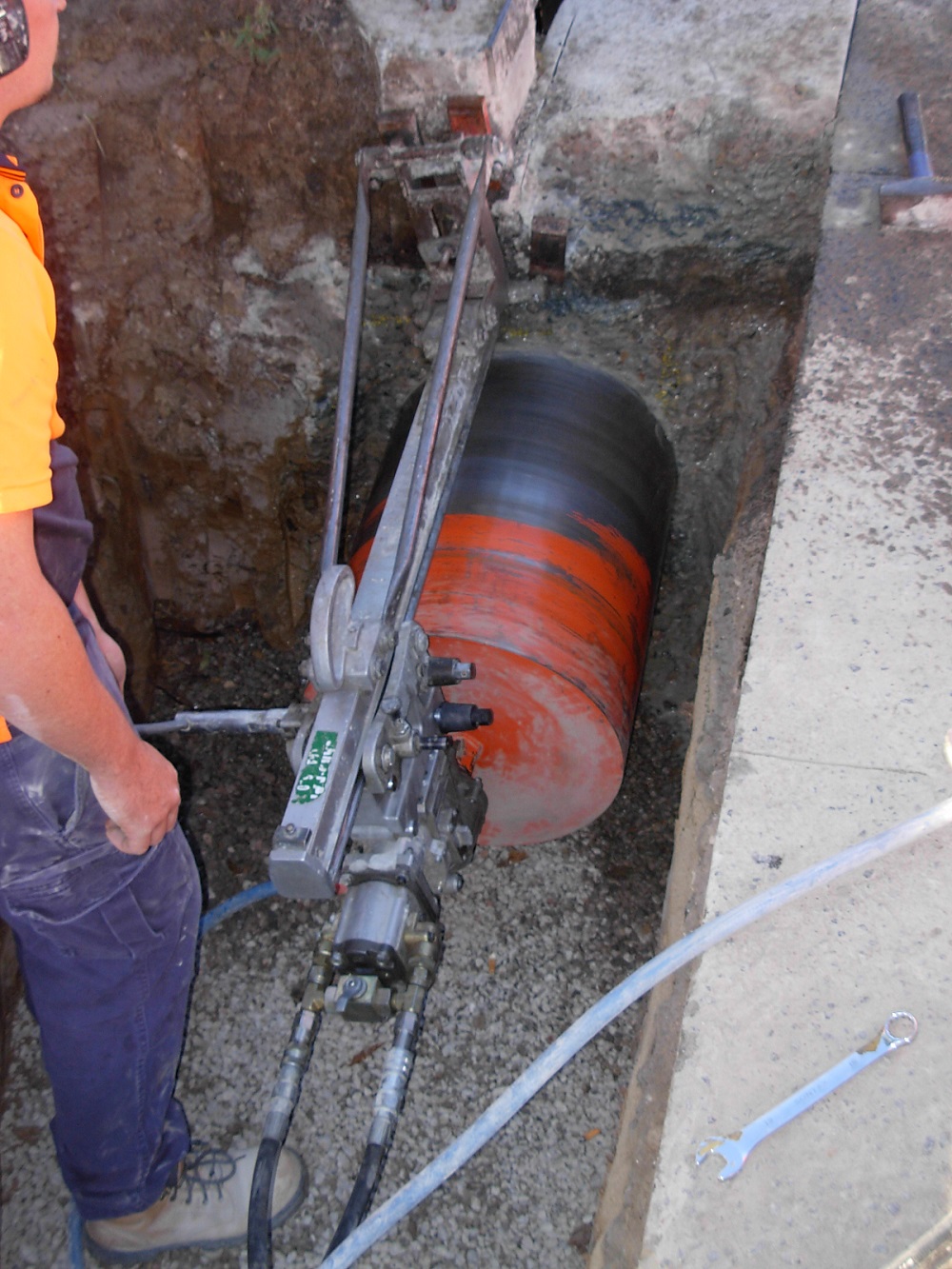

Horizontal Core Drilling
Core drilling horizontally through existing footing to run services.
